Part Story

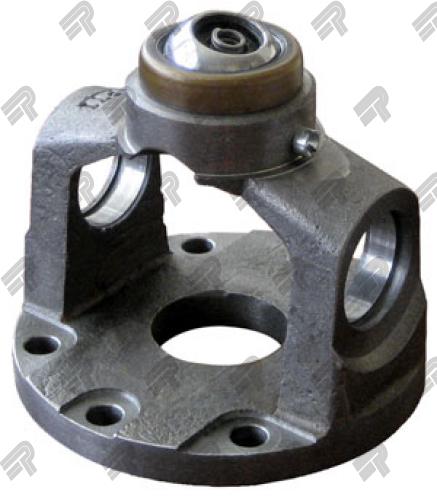

Dsp Cv Flange Yokes

Part Number 3102-392CV

  • Series: 1310
  • Pilot Type: M
  • Pilot Diameter: 3.920
  • Bolt Circle Diameter: 3.386
  • Bolt Hole Diameter: .322
  • Centerline To Face: 1.625
  • Ball Stud Diameter: 0.500
  • Notes: This CV flange yoke has 6 bolt holes base on an 8 hole pattern. Used to replace CV joints on 2007 and later Jeep JK with double cardan CV at tranfer case
  • Vehicle Class: LD
  • Brand: PTI
Part Story

This 1310 CV conversion flange fits in the factory transfer case flange of the 2007+ Jeep JK.

This part can be combined with the 3102-392 (rear differential) to build a new 1310 Spicer style rear CV shaft without changing the factory differential or transfer case flanges.
