Part Story

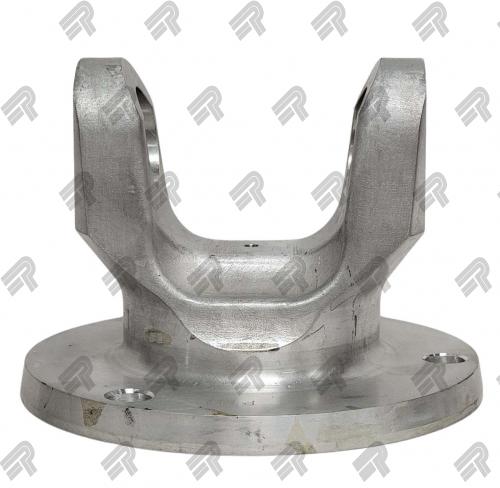

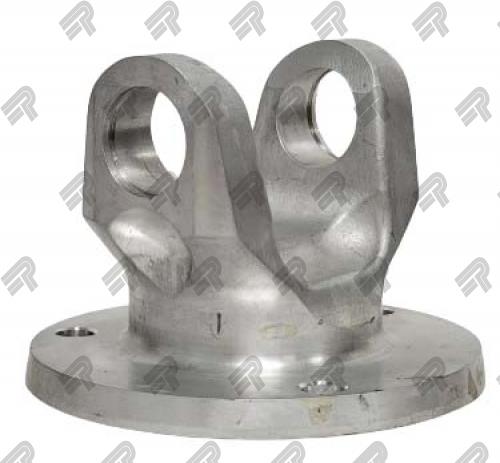

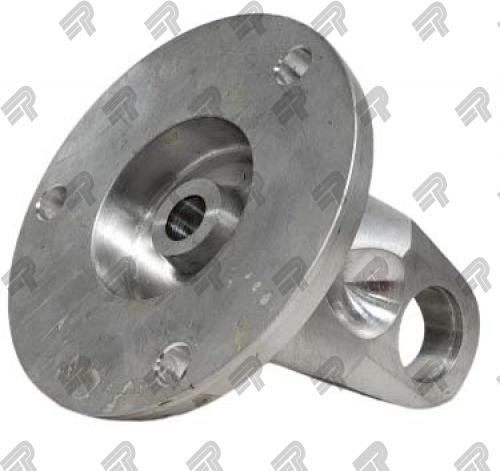

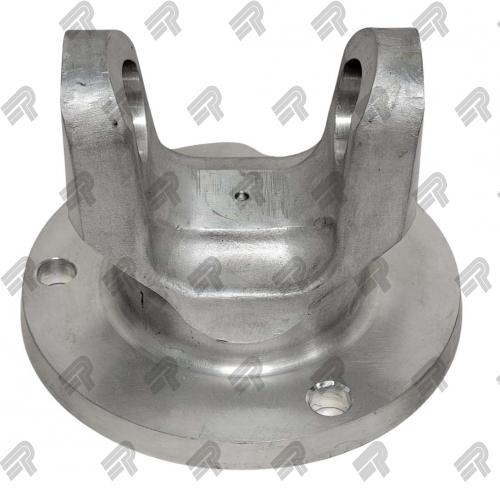

Dsp Flange Yokes
Part Number 3502-0143
- Series: 1350
- Pilot Type: F
- Pilot Diameter: 0.551
- Bolt Circle Diameter: 3.780
- Bolt Hole Count: 3
- Bolt Hole Diameter: 0.402
- Centerline To Face: 3.000
- Swing Diameter: 5.450
- Notes: Aluminum Tri Flange, 96mm (3.780), 14mm nose hole, 10mm bolt holes
- Vehicle Class: LD
- Brand: PTI
